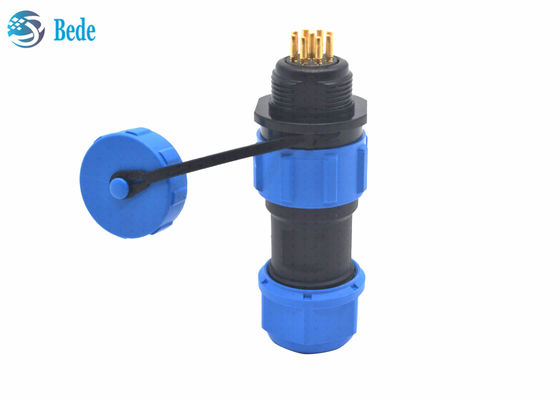

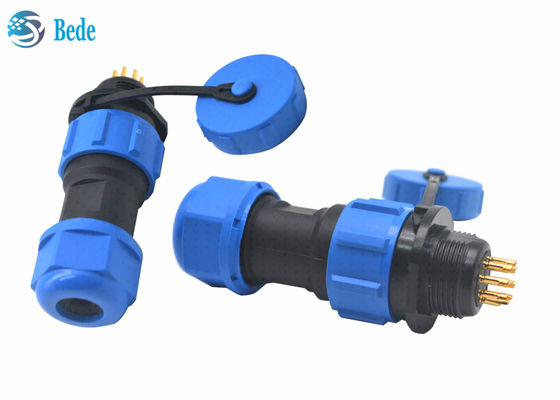

PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel

M17 Waterproof Connector Panel Mounting Connector 2 3 4 5 6 7 9 Pin Cable To Panel

Structure

1. Female connector for panel mounting, housing merterial is PPS(Temperature resistance 260℃), pins merterial is brass with gold plated

2.Protactive cap, protect the socket when not connected

3.O-ring for waterproofing, rubber material

4.Male connector, material as the same as female

5.Nut for fixing male and female after connection

6.Housing, fix male connector and cable

7/8.Screw claw and nut for waterproof of cable end

Electrical data

All family

  M13 M17 M21 are in stock, all of them have  cable-to-cable docking model  and cable to panel mounting models
