Copper Shell M12 Circular Gx12 Aviation Connector IP68 Cable To Cable Docking Connector 2~7 Pin

Copper Shell M12 Circular connector IP68 Cable To Cable Docking Connector 2~7 Pin

Structure

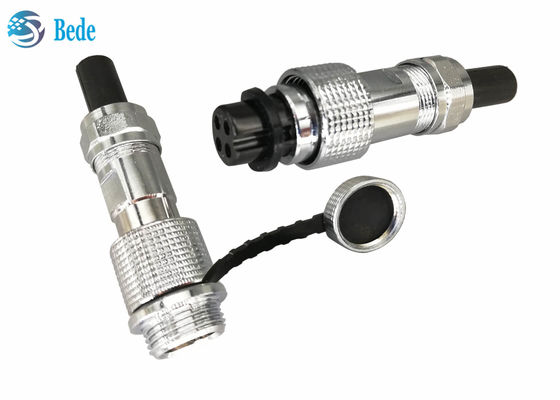

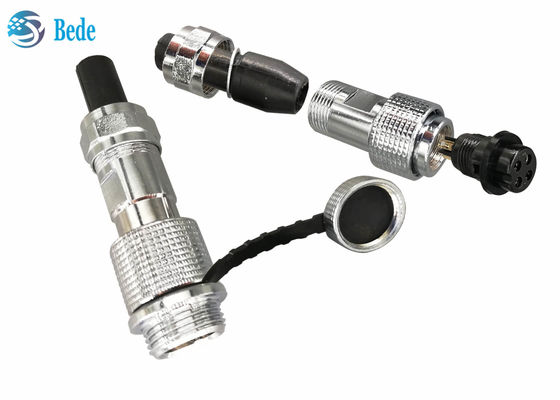

1.housing of male connector, shell material is copper with chrome plated,

2.Nut and washer, nut material is copper with chrome plated, washer material is stainless steel

3.O-rings for waterproofing

4.male connector, contact pins material is brass with gold plated,shell material is copper with chrome plated,

5,protactive cap

6.female connector, black color bakelite shell and gold plated contact pins

7.Housing of female connector, copper with chrome plated

8,Nut, copper with chrome plated,  gripping the cable with 7&9 together  for waterproofing,

9, Rubber sleeve

Notice: It is critical that all nuts are tightened after connection, otherwise the waterproofing effect may be adversely affected
