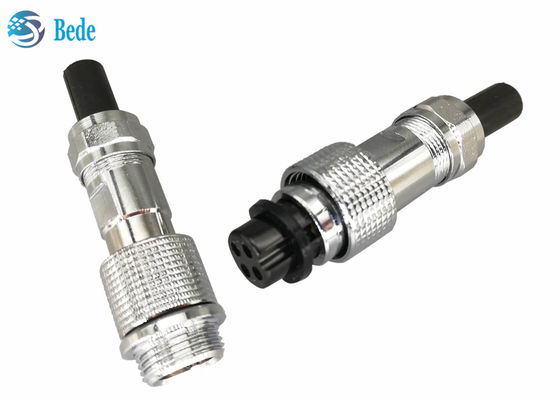

GX16 Aviation Connector Waterproof IP68 cable to cable docking connector Style 2~10 Pin

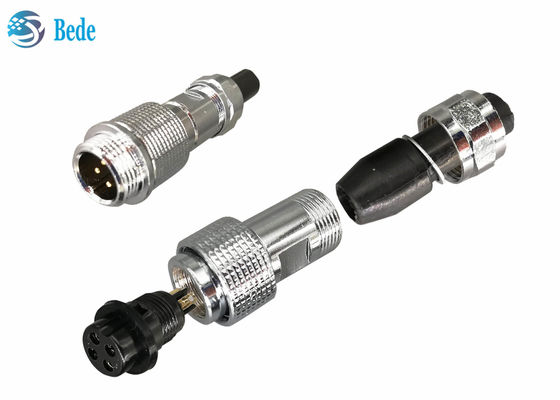

Structure
1.Male connector, shell material is zinc alloy with nickel plated, contact pins material is brass with gold plated
2.Optional accessories, protective cover, zinc alloy and rubber materials
3.O-rings for waterproofing
4.Female connector, black bakelite material, contact pins material is brass with gold plated
5,Housing of female connector,zinc alloy with nickel plated
6/7/8,Cable gripping parts for waterproofing,
Notice: It is critical that all nuts are tightened after connection, otherwise the waterproofing effect may be adversely affected
Electrical data
| pins |
2 pin 3pin |
4pin |
5pin |
6 7 8 9 10 pin |
| rated current |
7A |
5A |
5A |
4A |
| working voltage |
200V |
| Contact resistance |
3mΩ max |
| Insulation resistance |
1500MΩ |
| Withstand voltage |
1500V |
| Contact hole size Φmm |
2.45 |
2.45 |
2.00 |
1.15 |
All familier
About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
1.Panel mounting model-- front mounting
2.Cable docking model
3.Panel mounting model--Rear mounting
4.Panel mounting model with round flange
5.Panel mounting model with square flange
6.Panel mounting model with rhombus flange
7.PCB welding model with elbow pins
8.PCB welding model with straight pins
9.Panel mounting model with right angle--front mounting
10.Waterproof cable docking model
11.Waterproof panel mount model
12.Panel mounting model with right angle--rear mounting
