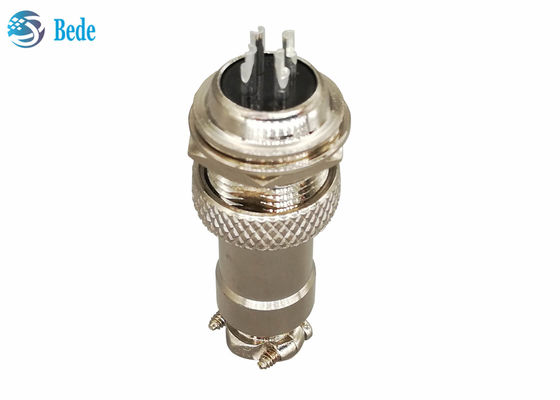

Rear Mounting Style Aviation connector male and female kits 6~10 Pins 200V 4A
Product Description

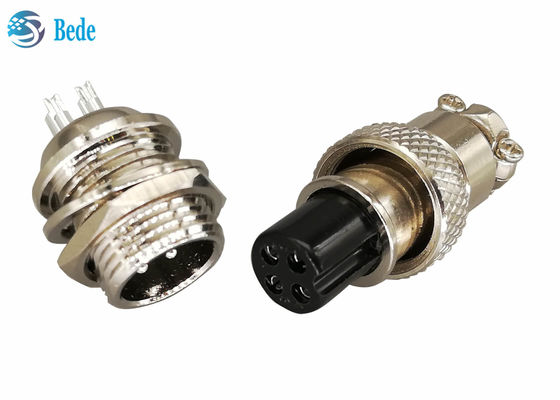

1. a panel to wire connetor kits, male connetor for pannel mounting and female connetor for wire welding
2. panel mounting style is rear mounting, fasten with nuts after passing through the panel mounting holes
3. Military quality, fixed with nuts after connection, no falling off
4. Suitable for -50 ~ +70℃ temperetrue
5. suitale cable diameter Φ7.5mm
6. main body material is nickel plated zinc alloy,lightweight and sturdy
7. contact pins material is brass with silver plated,high conductivity and low contact resistance
Electrical data
| pins |
6 |
7 |
8 |
9 |
10 |
| Rated current |
4A |
4A |
4A |
4A |
4A |
| working voltage |
200V |
200V |
200V |
200V |
200V |
| Insulation resistance |
1500V |
1500V |
1500V |
1500V |
1500V |
| Contact resistance |
≤3mΩ |
≤5mΩ |
| Contact hole size |
1.15mm |
1.15mm |
1.15mm |
1.15mm |
1.15mm |
Size and pins location
Product size and pins location as following picture, customization is welcome, please feel free to contact us.
All familier
About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
