AISG C485 Style A1 Connector Assembly Male End 5 Pins M16

AISG C485 Style A1 Connector Assembly Male End 5 Pins M16 Circular Connectors

Description

• Connector assemblies for AISG cable, RET cable, AISG jumper cable, AISG control cable
• Produced according to AISG C485, style A1 connector assembly,
• male end, 5 pins,
• mounting thread: M16
• Pin layout is based on DIN EN 61076-2-106:2012-04 variant 08-a.

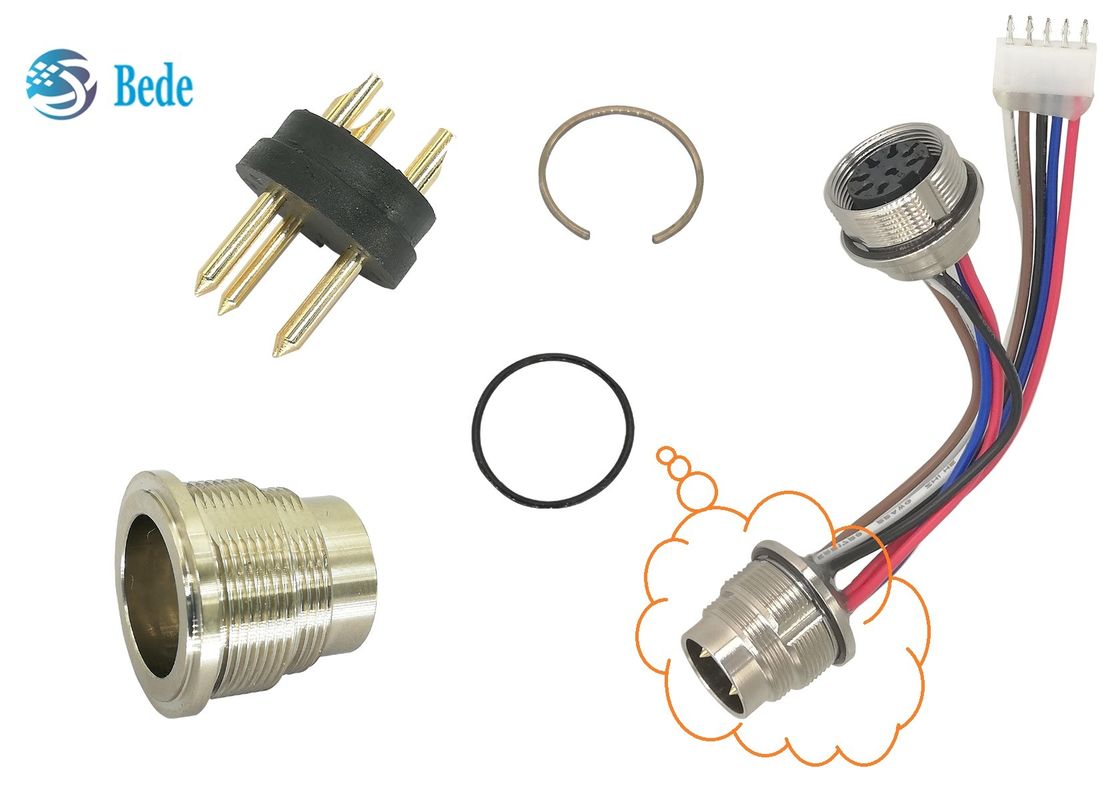

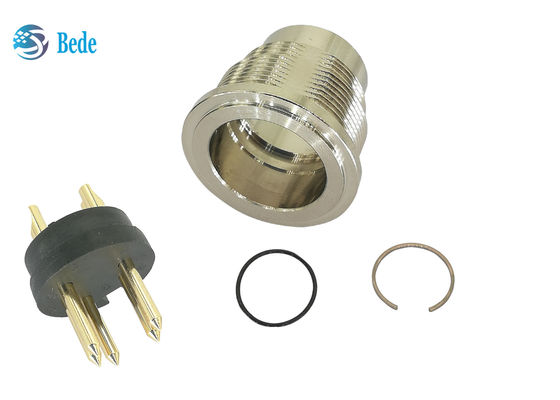

All components

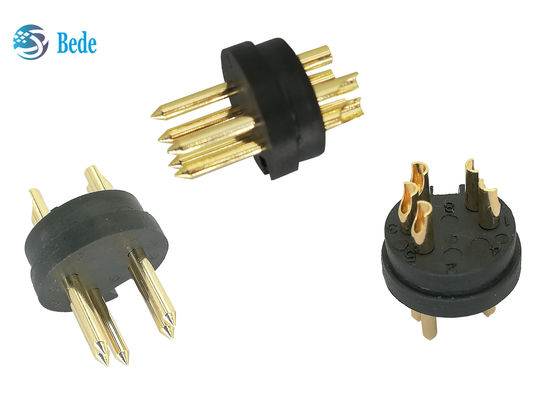

1. Insulator, PBT plastic, housing of gauges

2. Gauges / Contactor, copper materials, gold plated, good electrical conductivity and low contact resistance

3.Spring ring, used for fixing the insulator

4.O-rings, Silicone material, for waterproof sealing,

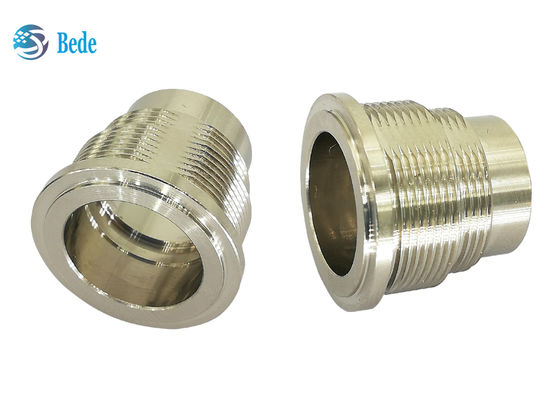

5.Housing, material copper, nickel plated
