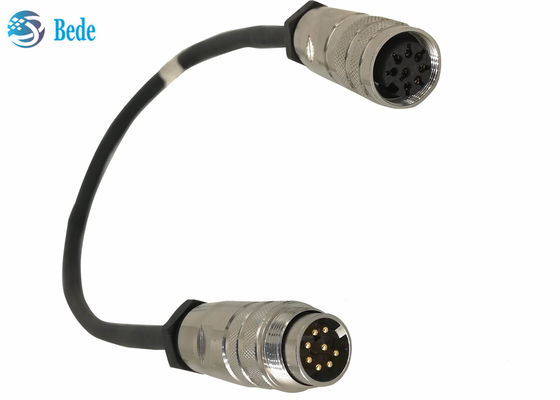

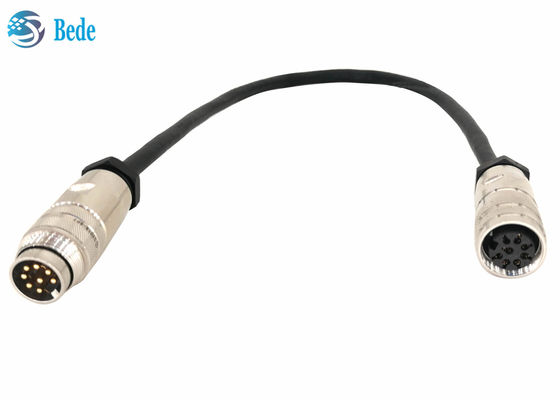

AISG Male To AISG Female Ret Control Cable 0.5M Length 8 Conductors MCU To RCU

RET Control Cables AISG Male To AISG Female 0.5M Length 6 Conductors MCU To RCU

Description:

    Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely. This RET Cables provide a direct connect option from the Master Control Unit (MCU) to a RET module, feed data and power from controller to RET System. These cables are offered in a variety of lengths, with the shorter lengths being available to “daisy chain” multiple RET modules together at the top of the antenna base station.

Quick details:

1. Length: 0.5 meter, customized available,
2. Protocol: AISG 1.1 | AISG 2.0
3. AISG Connector: 8-pin DIN Female / Male
4. AISG Connector Standard: IEC 60130-9
5. Insulation resistance: ≥5MΩ
6. Contact resistance: ≤5mΩ
7. Connector Interfaces:Terminated AISG 8‐pin socket screw lock male and female

About the cable:

• 4 x 0.75mm²(20 AWG) stranded (power) 2 x 0.25mm²(23 AWG) twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
• 4 x 0.41mm²(21AWG) stranded (power) 2 x 0.21mm² (24 AWG)twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
• The above two wire sizes for your opinion
• The outer jacket is available in two materials for your opinion, PU or PVC
• Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%

Applications:

• Remote Electrical Tilt (RET) applications
• AISG compliant antenna control units
• Tower mount amplifiers with AISG interface
• Control Network interfaces with AISG interface
