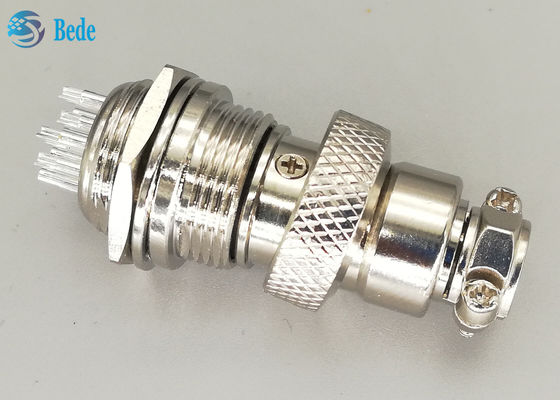

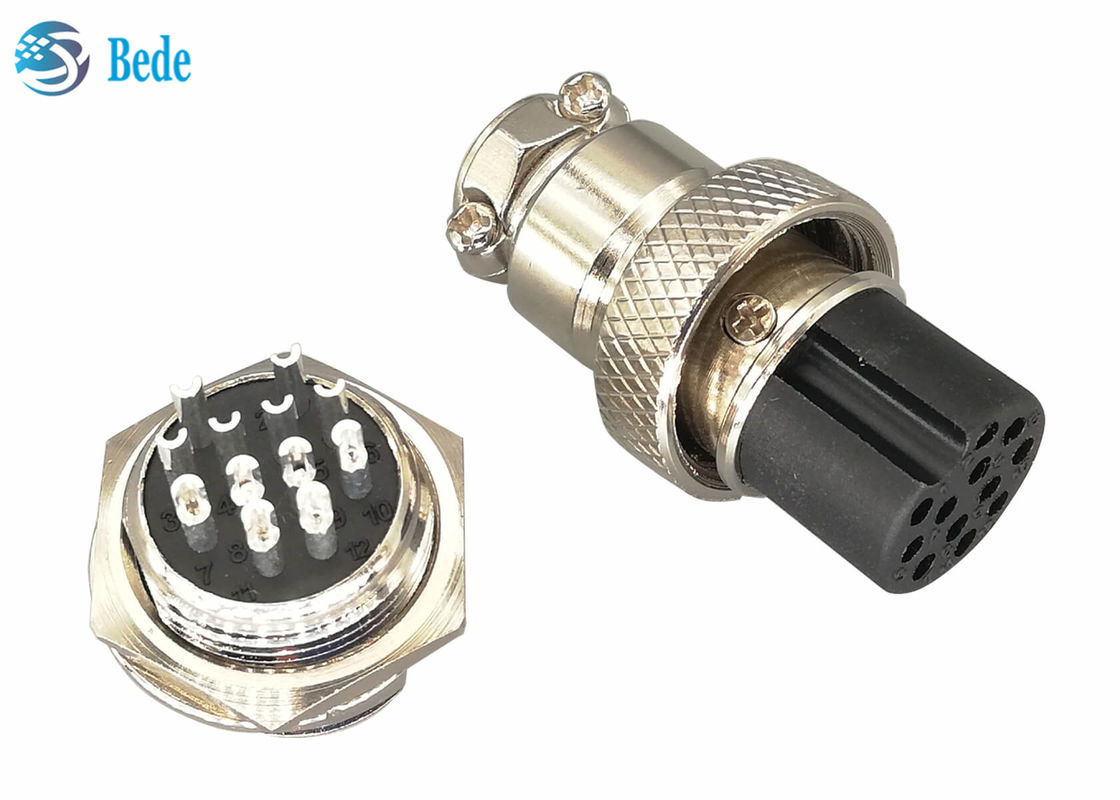

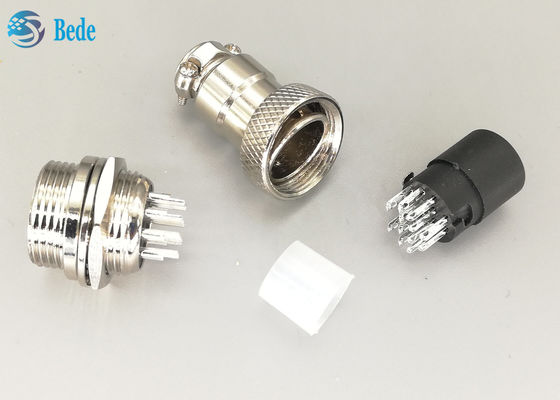

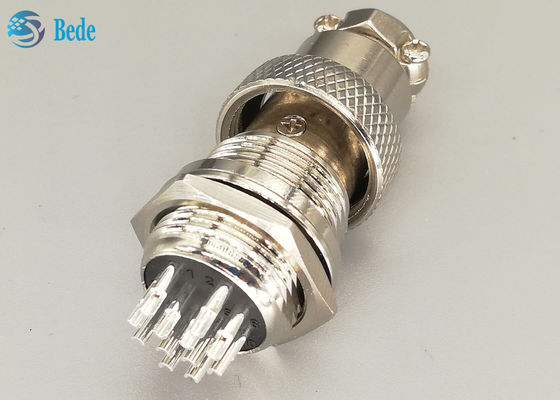

12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug

Aviation Conntectors g×16 12 Pin Male And Female Straight Silver Plated Plug

Product parameters

1. 12 pins aviation connector, a 16mm mounting hole needs to be reserved on the panel,coming with a plug and a socket, screws and spring washer
2. Terminal connection mode :welding
3. The plug connect method:Threaded connections
4. Shell material: Zinc alloy, nickel plated
5. Contact material: Copper plating silver
6. Cable diameter :φ≤7mm
7. Contact pin diameter:φ=1.15mm
8. Rated current: 4A
9. Rated voltage:125V
10. Operating Voltage: 200V
11. Insulation resistance: ≥1500MΩ
12. Contact type:Plug/socket
13. Times of pull out and inserts:500

Application Field

• Industrial control
• Testing center
• Rail transportation
• Testing instruments
• Outdoor lighting
• Instrument and meter
• Aviation and navigation
• And so on
